MAERSK warehouse in Mszczonów

The subject of the contract was Project Management for the construction of a zero-emission warehouse with a concierge desk and an office building intended for the pharmaceutical industry in Mszczonów in Żyrardów poviat. The warehouse building built from scratch is a zero-emission facility in which the most modern solutions in the field of building ecology have been implemented in order to achieve CO2 neutrality, such as: photovoltaic installation; air source heat pump or appropriate insulation thickness. The building obtained the BREEAM certificate at the Excellent level with a score of 76,2%.



Characteristics of the object:

  • Construction:

     irregular shape resembling the letter "L", with dimensions in the axes 67.0x192.1m and 42.0x67.8m

  • Usable floor area of the hall:

    15 305 m2

  • The cubature of the hall :

    220 115 m3

  • Height to the attic of the hall :

    15,20 m

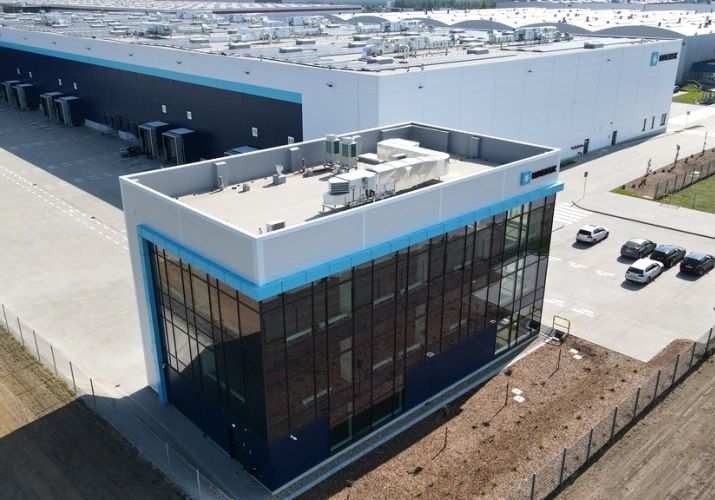

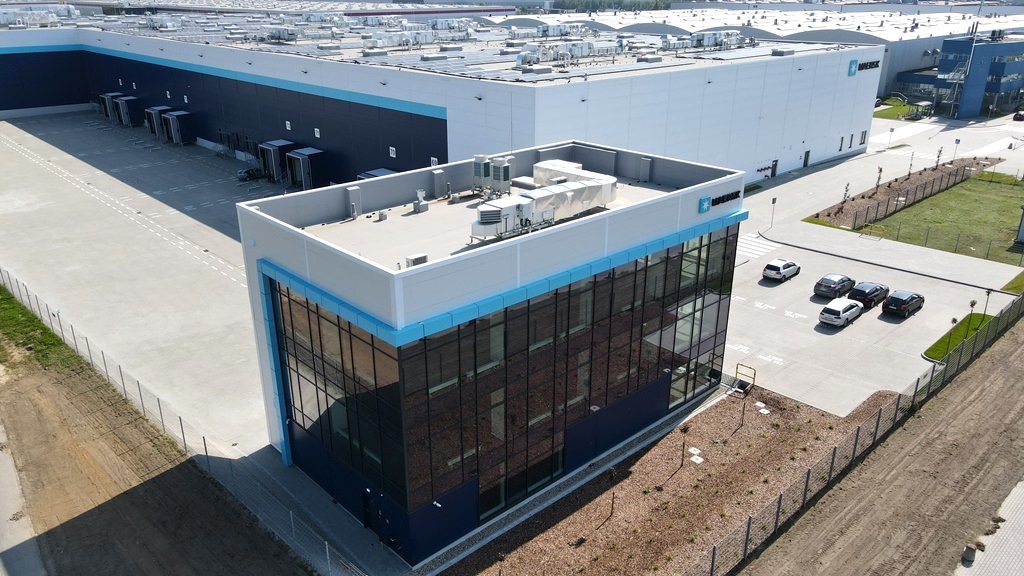

  • Office building :

    23.2 × 12.6 m along the external outline of the structure

  • Usable area of the office building :

    301 m2

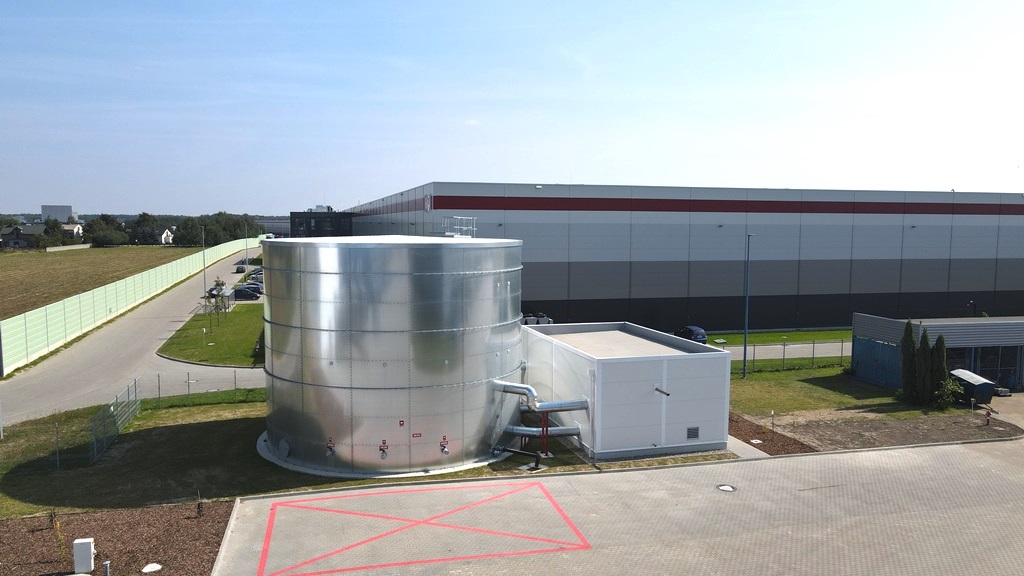

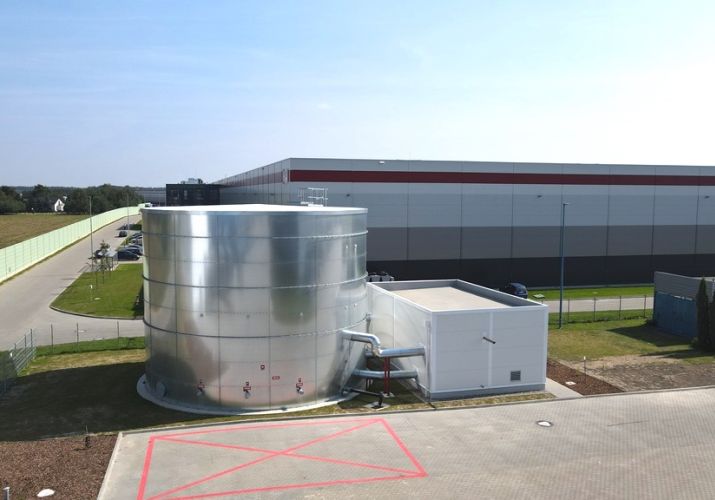

  • Octagonal-shaped tank:

    with a diameter of 13m

  • The foundation plate:

     for an octagonal-shaped tank in plan, dimensions: 14.0 × 14.0m

  • Parking spaces:

    235

MAERSK warehouse

Scope of work

  1. Tender procedure for the selection of the General Contractor (preparation of tender procedures, collection and analysis of offers, participation in negotiations with the Investor, selection recommendation).
  2. Design Supervision.
  3. Exercising investor's supervision in the construction, road, mechanical and electrical industries.
  4. Service and participation in final acceptance.
  5. Cost control.
  6. Coordination of BREEAM certification.

Customer

Damco Poland Sp. z o.o.

References

See references

Short Movie

See our short movie

Applied solutions and installations

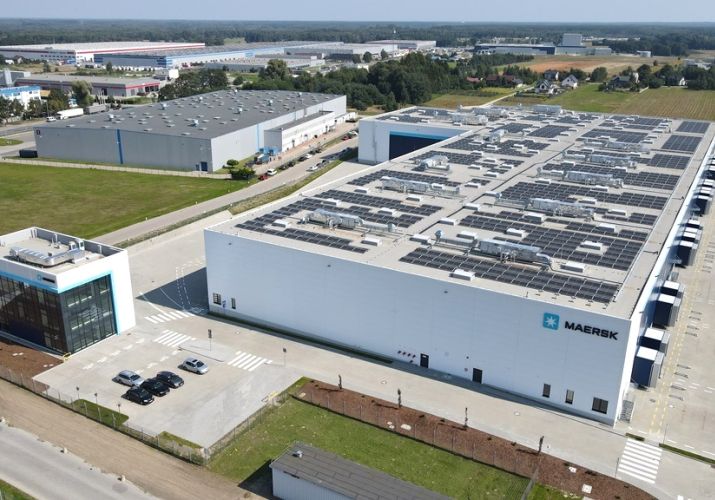

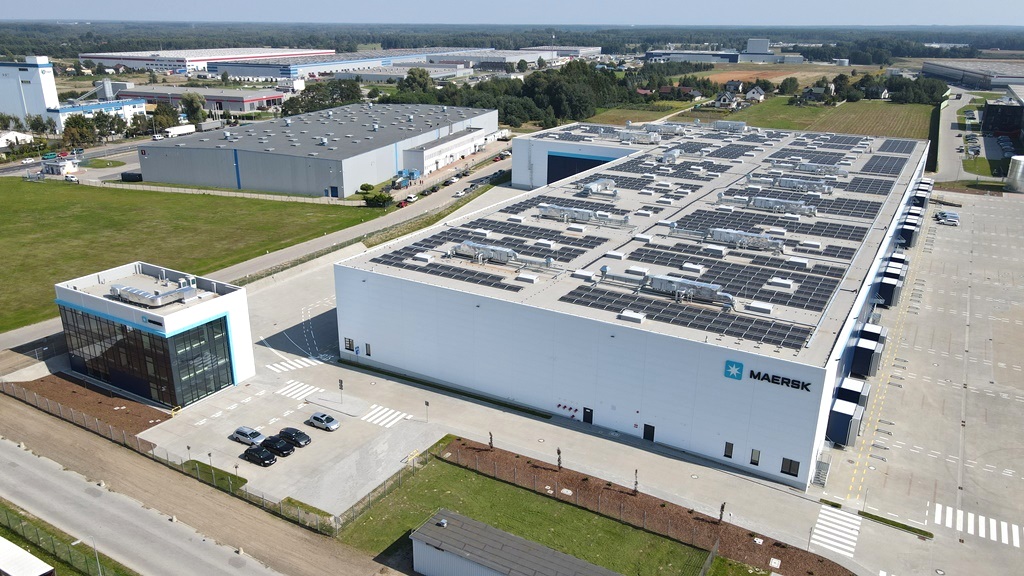

1,06 MW off-grid photovoltaic installation - the energy produced from the photovoltaic installation is fully used for the own needs of the newly established and existing facility.

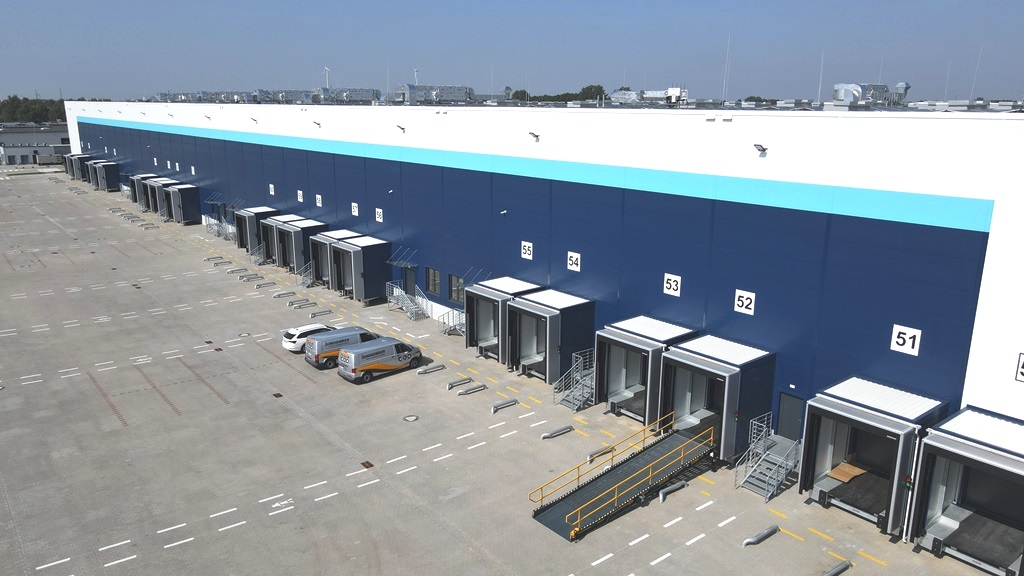

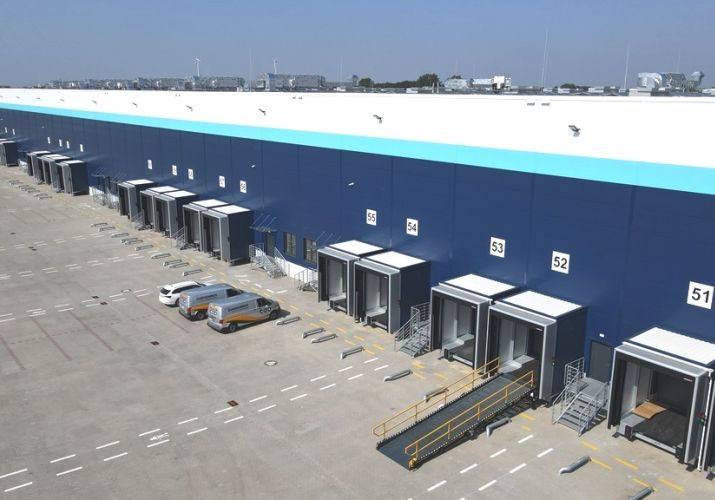

Uninterrupted cold chain when unloading goods

Increased insulation of all partitions

Air source heat pump

Installation of sanitary and household water, sanitary and rain sewage systems

Installation of ventilation and air conditioning

Electric, gas, heating, sprinkler and hydrant installations

Smoke extraction installation, emergency and evacuation lighting, installation of earthing and equipotential bondings

Teletechnical installation

Installation of overvoltage protection, protection against electric shocks and lightning protection

Container for external fire fighting purposes

Rainwater retention reservoir
